D91/R55-3H940NB-LW
Product Info
Item code
EIDOS RECESSED D91/R / D91/R55-3H940NB-LW
Category
Downlight, Downlight
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
ceiling recessed
Body
Body and base in aluminium. Heat sink, joint and frame in die-cast aluminium.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005

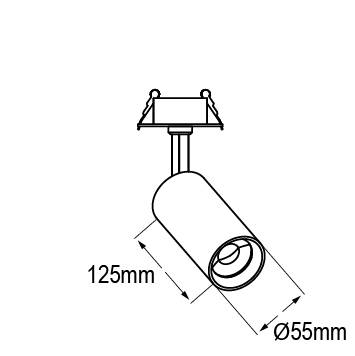

Dimensions
Total device height (mm)
125
D: Total diameter device (mm)
55
Optical System
Beam
narrow
Emission
direct
Adjustable
Yes

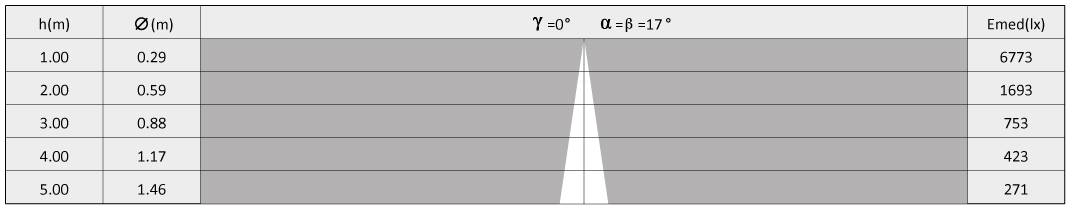

Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross12
UGR longitudinal12
CBCP8321cd
Sources
MacAdam
Step 2
Output Flux
1230 lm
Source type
LED
System power
15W
Temperature Colour
4000K CRI>90
Electrical
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Remote, not included
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
MEC10029
Driver ON-OFF IP20. Setting 9V 350mA (3W) | Setting 36V 350mA (15W)
MEC10037
Driver DALI IP20 15W. Setting 36V 350mA
