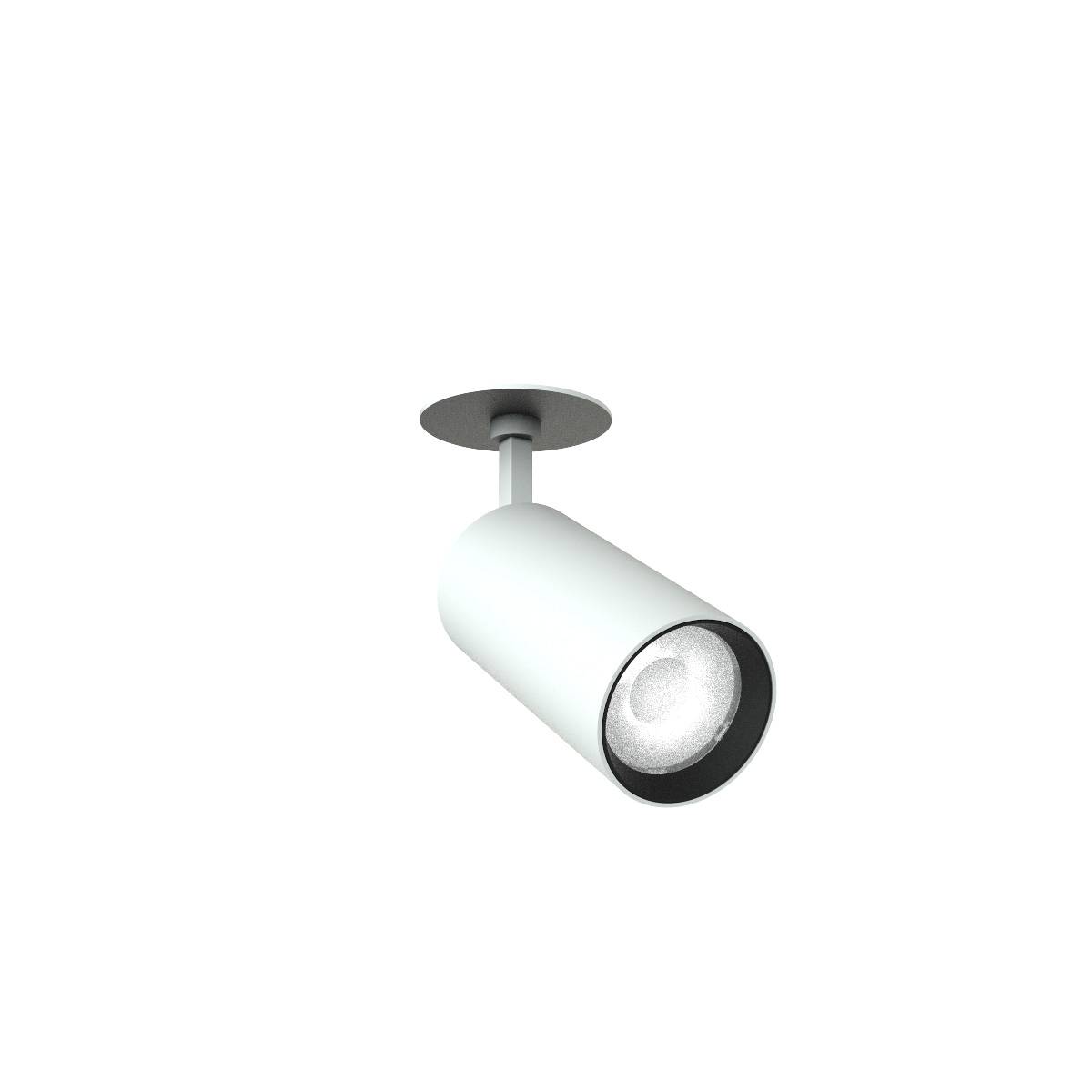

EIDOS RECESSED D91/R

  • Request Information

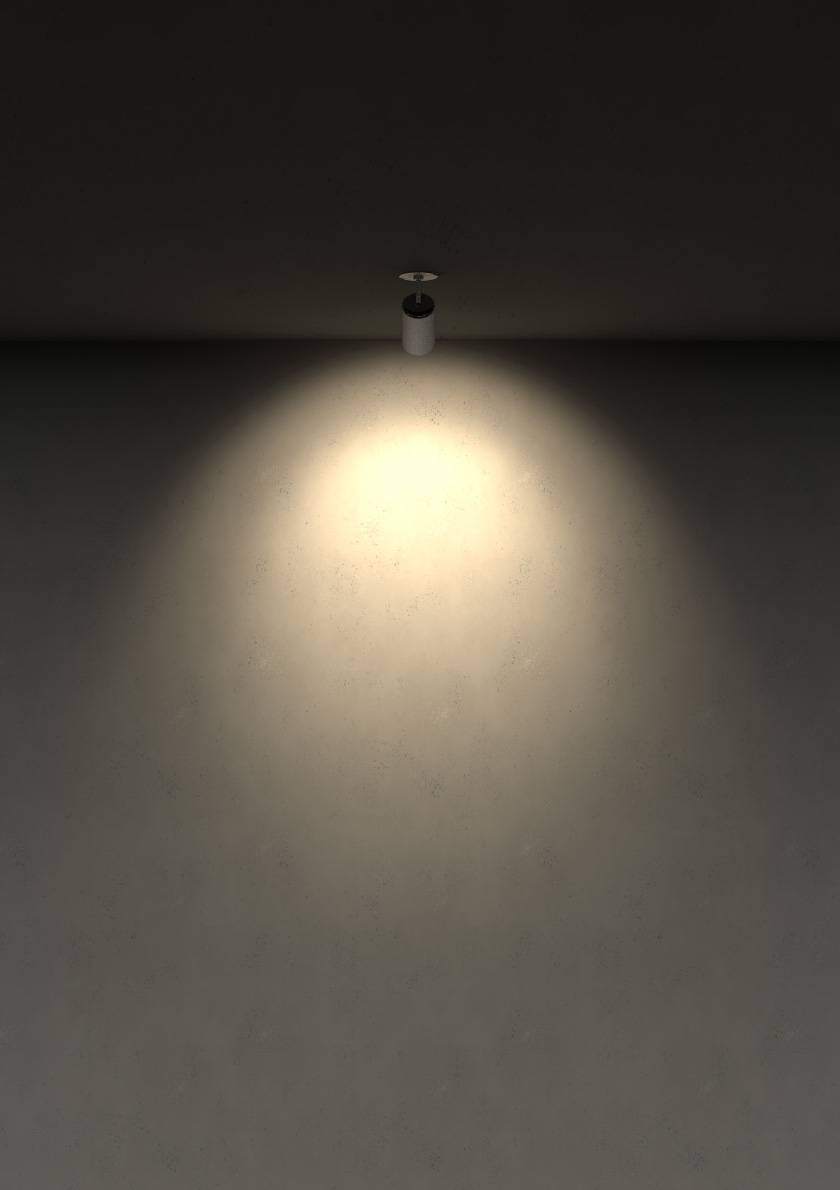

Eidos is an ultra-compact projector with a high technological profile, which can be wall-mounted, suspended or in the track version. The wide range of optics and various accessories guarantee precise, high-efficiency beams, offering the possibility of installing Eidos in many different contexts. Available in zoommable version to adjust the beam opening from 15° to 55°.

products (9)

27

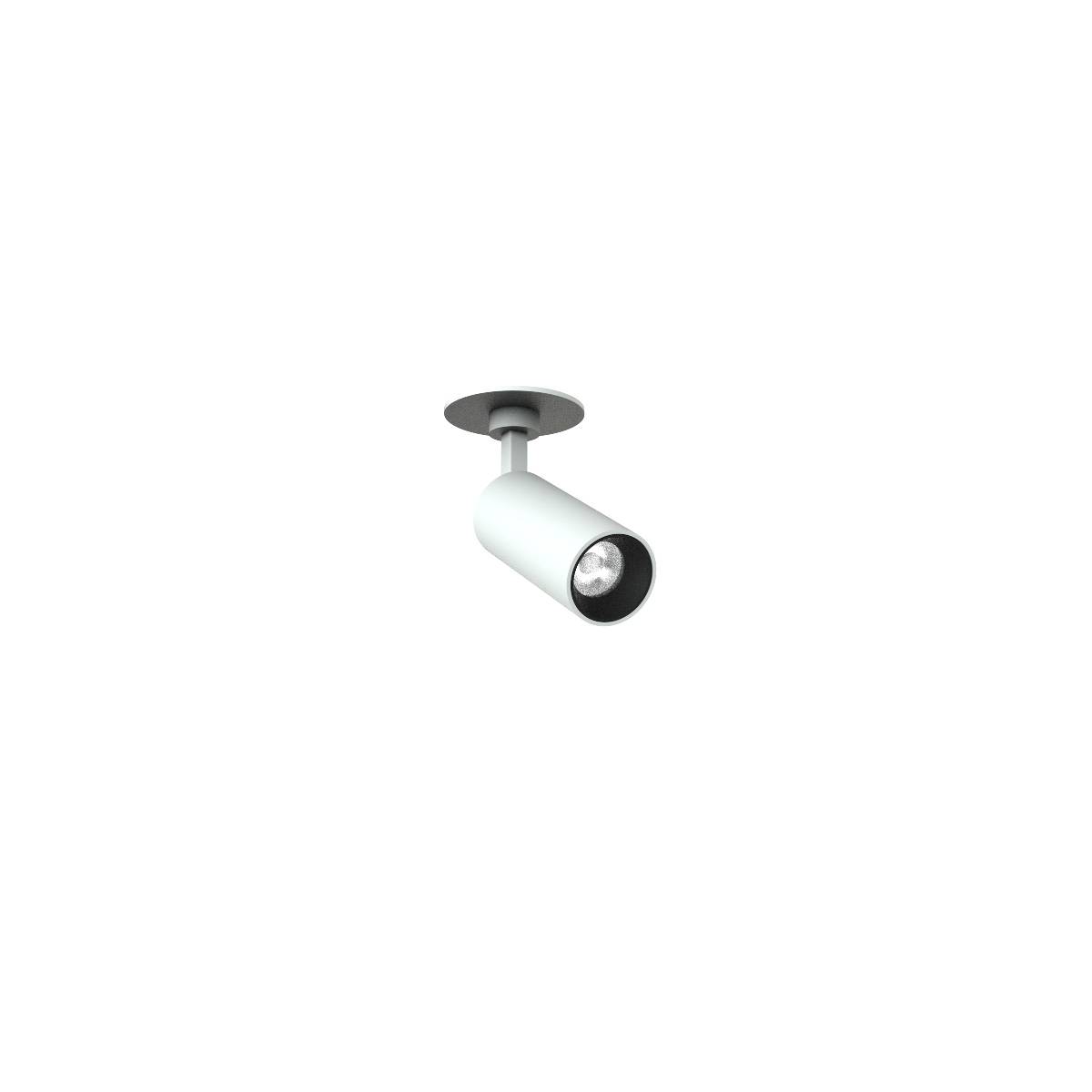

EIDOS RECESSED Ø35
EIDOS RECESSED Ø35 CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R35-3L927WB-LWLED3W225 lm 2700KwideD: 35mm, H: 85mm
D91/R35-3L927VW-LWLED3W225 lm 2700Kvery wideD: 35mm, H: 85mm
D91/R35-3L930SN-LWLED3W210 lm 3000K CRI>90very narrowD: 35mm, H: 85mm
D91/R35-3L930NB-LWLED3W225 lm 3000K CRI>90narrowD: 35mm, H: 85mm
D91/R35-3L930MB-LWLED3W240 lm 3000K CRI>90mediumD: 35mm, H: 85mm
D91/R35-3L930WB-LWLED3W240 lm 3000K CRI>90wideD: 35mm, H: 85mm
D91/R35-3L930VW-LWLED3W240 lm 3000K CRI>90very wideD: 35mm, H: 85mm
D91/R35-3L940SN-LWLED3W210 lm 4000K CRI>90very narrowD: 35mm, H: 85mm
D91/R35-3L940NB-LWLED3W225 lm 4000K CRI>90narrowD: 35mm, H: 85mm
D91/R35-3L940MB-LWLED3W240 lm 4000K CRI>90mediumD: 35mm, H: 85mm
D91/R35-3L940WB-LWLED3W240 lm 4000K CRI>90wideD: 35mm, H: 85mm
D91/R35-3L940VW-LWLED3W240 lm 4000K CRI>90very wideD: 35mm, H: 85mm
D91/R35-3H927SN-LWLED6W390 lm 2700Kvery narrowD: 35mm, H: 85mm
D91/R35-3H927NB-LWLED6W420 lm 2700KnarrowD: 35mm, H: 85mm
D91/R35-3H927MB-LWLED6W450 lm 2700KmediumD: 35mm, H: 85mm
D91/R35-3H927WB-LWLED6W450 lm 2700KwideD: 35mm, H: 85mm
D91/R35-3H927VW-LWLED6W450 lm 2700Kvery wideD: 35mm, H: 85mm
D91/R35-3H930SN-LWLED6W420 lm 3000K CRI>90very narrowD: 35mm, H: 85mm
D91/R35-3H930NB-LWLED6W450 lm 3000K CRI>90narrowD: 35mm, H: 85mm
D91/R35-3H930MB-LWLED6W480 lm 3000K CRI>90mediumD: 35mm, H: 85mm
D91/R35-3H930WB-LWLED6W480 lm 3000K CRI>90wideD: 35mm, H: 85mm
D91/R35-3H930VW-LWLED6W480 lm 3000K CRI>90very wideD: 35mm, H: 85mm
D91/R35-3H940SN-LWLED6W420 lm 4000K CRI>90very narrowD: 35mm, H: 85mm
D91/R35-3H940NB-LWLED6W450 lm 4000K CRI>90narrowD: 35mm, H: 85mm
D91/R35-3H940MB-LWLED6W480 lm 4000K CRI>90mediumD: 35mm, H: 85mm
D91/R35-3H940WB-LWLED6W480 lm 4000K CRI>90wideD: 35mm, H: 85mm
D91/R35-3H940VW-LWLED6W480 lm 4000K CRI>90very wideD: 35mm, H: 85mm
12

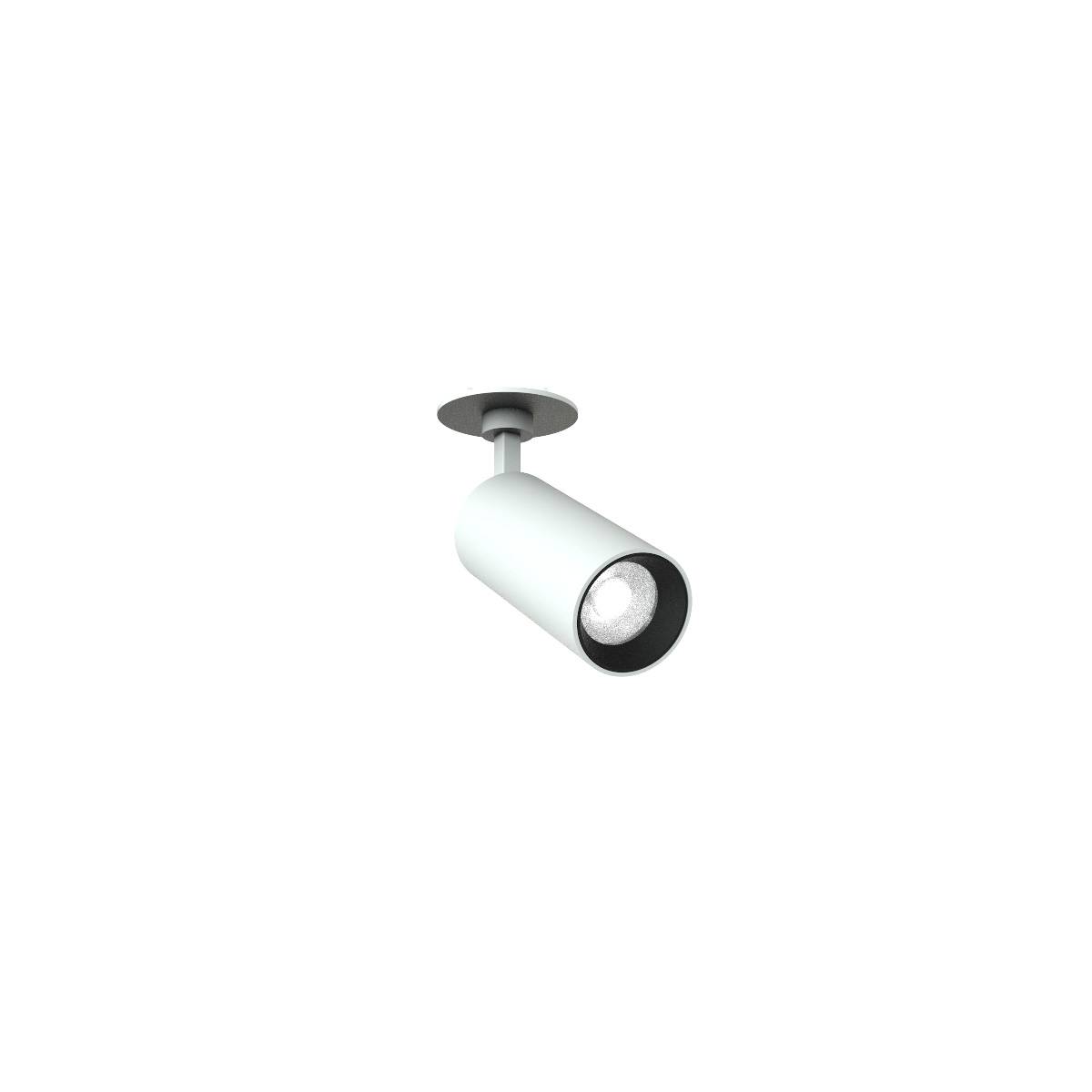

EIDOS RECESSED Ø45
EIDOS RECESSED Ø45 CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R45-3927WB-LWLED10W800 lm 2700KwideD: 45mm, H: 105mm
D91/R45-3927VW-LWLED10W800 lm 2700Kvery wideD: 45mm, H: 105mm
D91/R45-3930SN-LWLED10W750 lm 3000K CRI>90very narrowD: 45mm, H: 105mm
D91/R45-3930NB-LWLED10W800 lm 3000K CRI>90narrowD: 45mm, H: 105mm
D91/R45-3930MB-LWLED10W850 lm 3000K CRI>90mediumD: 45mm, H: 105mm
D91/R45-3930WB-LWLED10W850 lm 3000K CRI>90wideD: 45mm, H: 105mm
D91/R45-3930VW-LWLED10W850 lm 3000K CRI>90very wideD: 45mm, H: 105mm
D91/R45-3940SN-LWLED10W750 lm 4000K CRI>90very narrowD: 45mm, H: 105mm
D91/R45-3940NB-LWLED10W800 lm 4000K CRI>90narrowD: 45mm, H: 105mm
D91/R45-3940MB-LWLED10W850 lm 4000K CRI>90mediumD: 45mm, H: 105mm
D91/R45-3940WB-LWLED10W850 lm 4000K CRI>90wideD: 45mm, H: 105mm
D91/R45-3940VW-LWLED10W850 lm 4000K CRI>90very wideD: 45mm, H: 105mm
27
EIDOS RECESSED Ø55
EIDOS RECESSED Ø55 CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R55-3L927WB-LWLED12W984 lm 2700KwideD: 55mm, H: 125mm
D91/R55-3L927VW-LWLED12W984 lm 2700Kvery wideD: 55mm, H: 125mm
D91/R55-3L930SN-LWLED12W924 lm 3000K CRI>90very narrowD: 55mm, H: 125mm
D91/R55-3L930NB-LWLED12W984 lm 3000K CRI>90narrowD: 55mm, H: 125mm
D91/R55-3L930MB-LWLED12W1044 lm 3000K CRI>90mediumD: 55mm, H: 125mm
D91/R55-3L930WB-LWLED12W1044 lm 3000K CRI>90wideD: 55mm, H: 125mm
D91/R55-3L930VW-LWLED12W1044 lm 3000K CRI>90very wideD: 55mm, H: 125mm
D91/R55-3L940SN-LWLED12W924 lm 4000K CRI>90very narrowD: 55mm, H: 125mm
D91/R55-3L940NB-LWLED12W984 lm 4000K CRI>90narrowD: 55mm, H: 125mm
D91/R55-3L940MB-LWLED12W1044 lm 4000K CRI>90mediumD: 55mm, H: 125mm
D91/R55-3L940WB-LWLED12W1044 lm 4000K CRI>90wideD: 55mm, H: 125mm
D91/R55-3L940VW-LWLED12W1044 lm 4000K CRI>90very wideD: 55mm, H: 125mm
D91/R55-3H927SN-LWLED15W1080 lm 2700Kvery narrowD: 55mm, H: 125mm
D91/R55-3H927NB-LWLED15W1155 lm 2700KnarrowD: 55mm, H: 125mm
D91/R55-3H927MB-LWLED15W1230 lm 2700KmediumD: 55mm, H: 125mm
D91/R55-3H927WB-LWLED15W1230 lm 2700KwideD: 55mm, H: 125mm
D91/R55-3H927VW-LWLED15W1230 lm 2700Kvery wideD: 55mm, H: 125mm
D91/R55-3H930SN-LWLED15W1155 lm 3000K CRI>90very narrowD: 55mm, H: 125mm
D91/R55-3H930NB-LWLED15W1230 lm 3000K CRI>90narrowD: 55mm, H: 125mm
D91/R55-3H930MB-LWLED15W1305 lm 3000K CRI>90mediumD: 55mm, H: 125mm
D91/R55-3H930WB-LWLED15W1305 lm 3000K CRI>90wideD: 55mm, H: 125mm
D91/R55-3H930VW-LWLED15W1305 lm 3000K CRI>90very wideD: 55mm, H: 125mm
D91/R55-3H940SN-LWLED15W1155 lm 4000K CRI>90very narrowD: 55mm, H: 125mm
D91/R55-3H940NB-LWLED15W1230 lm 4000K CRI>90narrowD: 55mm, H: 125mm
D91/R55-3H940MB-LWLED15W1305 lm 4000K CRI>90mediumD: 55mm, H: 125mm
D91/R55-3H940WB-LWLED15W1305 lm 4000K CRI>90wideD: 55mm, H: 125mm
D91/R55-3H940VW-LWLED15W1305 lm 4000K CRI>90very wideD: 55mm, H: 125mm
27
EIDOS RECESSED Ø65
EIDOS RECESSED Ø65 CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R65-3M927WB-LWLED20W1700 lm 2700KwideD: 65mm, H: 135mm
D91/R65-3M927VW-LWLED20W1700 lm 2700Kvery wideD: 65mm, H: 135mm
D91/R65-3M930SN-LWLED20W1600 lm 3000K CRI>90very narrowD: 65mm, H: 135mm
D91/R65-3M930NB-LWLED20W1700 lm 3000K CRI>90narrowD: 65mm, H: 135mm
D91/R65-3M930MB-LWLED20W1800 lm 3000K CRI>90mediumD: 65mm, H: 135mm
D91/R65-3M930WB-LWLED20W1800 lm 3000K CRI>90wideD: 65mm, H: 135mm
D91/R65-3M930VW-LWLED20W1800 lm 3000K CRI>90very wideD: 65mm, H: 135mm
D91/R65-3M940SN-LWLED20W1600 lm 4000K CRI>90very narrowD: 65mm, H: 135mm
D91/R65-3M940NB-LWLED20W1700 lm 4000K CRI>90narrowD: 65mm, H: 135mm
D91/R65-3M940MB-LWLED20W1800 lm 4000K CRI>90mediumD: 65mm, H: 135mm
D91/R65-3M940WB-LWLED20W1800 lm 4000K CRI>90wideD: 65mm, H: 135mm
D91/R65-3M940VW-LWLED20W1800 lm 4000K CRI>90very wideD: 65mm, H: 135mm
D91/R65-3H927SN-LWLED25W1875 lm 2700Kvery narrowD: 65mm, H: 165mm
D91/R65-3H927NB-LWLED25W2000 lm 2700KnarrowD: 65mm, H: 165mm
D91/R65-3H927MB-LWLED25W2125 lm 2700KmediumD: 65mm, H: 165mm
D91/R65-3H927WB-LWLED25W2125 lm 2700KwideD: 65mm, H: 165mm
D91/R65-3H927VW-LWLED25W2125 lm 2700Kvery wideD: 65mm, H: 165mm
D91/R65-3H930SN-LWLED25W2000 lm 3000K CRI>90very narrowD: 65mm, H: 165mm
D91/R65-3H930NB-LWLED25W2125 lm 3000K CRI>90narrowD: 65mm, H: 165mm
D91/R65-3H930MB-LWLED25W2250 lm 3000K CRI>90mediumD: 65mm, H: 165mm
D91/R65-3H930WB-LWLED25W2250 lm 3000K CRI>90wideD: 65mm, H: 165mm
D91/R65-3H930VW-LWLED25W2250 lm 3000K CRI>90very wideD: 65mm, H: 165mm
D91/R65-3H940SN-LWLED25W2000 lm 4000K CRI>90very narrowD: 65mm, H: 165mm
D91/R65-3H940NB-LWLED25W2125 lm 4000K CRI>90narrowD: 65mm, H: 165mm
D91/R65-3H940MB-LWLED25W2250 lm 4000K CRI>90mediumD: 65mm, H: 165mm
D91/R65-3H940WB-LWLED25W2250 lm 4000K CRI>90wideD: 65mm, H: 165mm
D91/R65-3H940VW-LWLED25W2250 lm 4000K CRI>90very wideD: 65mm, H: 165mm
3

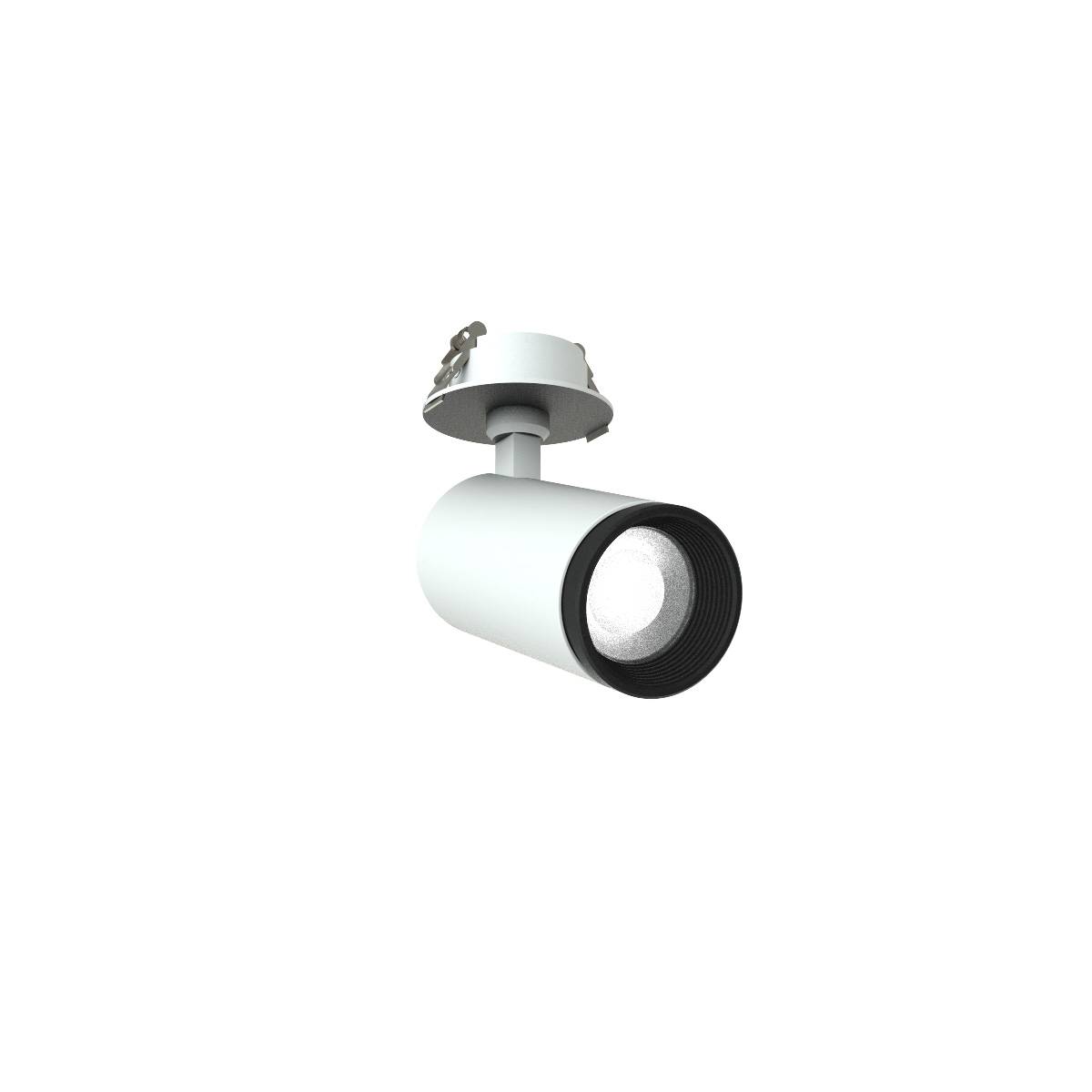

EIDOS RECESSED Ø65 ZOOM
EIDOS RECESSED Ø65 ZOOM CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R65-3H927ZB-LWLED15W900 - 1125 lm 2700Kadjustable zoomD: 65mm, H: 133mm
D91/R65-3H930ZB-LWLED15W901 - 1125 lm 3000K CRI>90adjustable zoomD: 65mm, H: 133mm
D91/R65-3H940ZB-LWLED15W902 - 1125 lm 4000K CRI>90adjustable zoomD: 65mm, H: 133mm
12

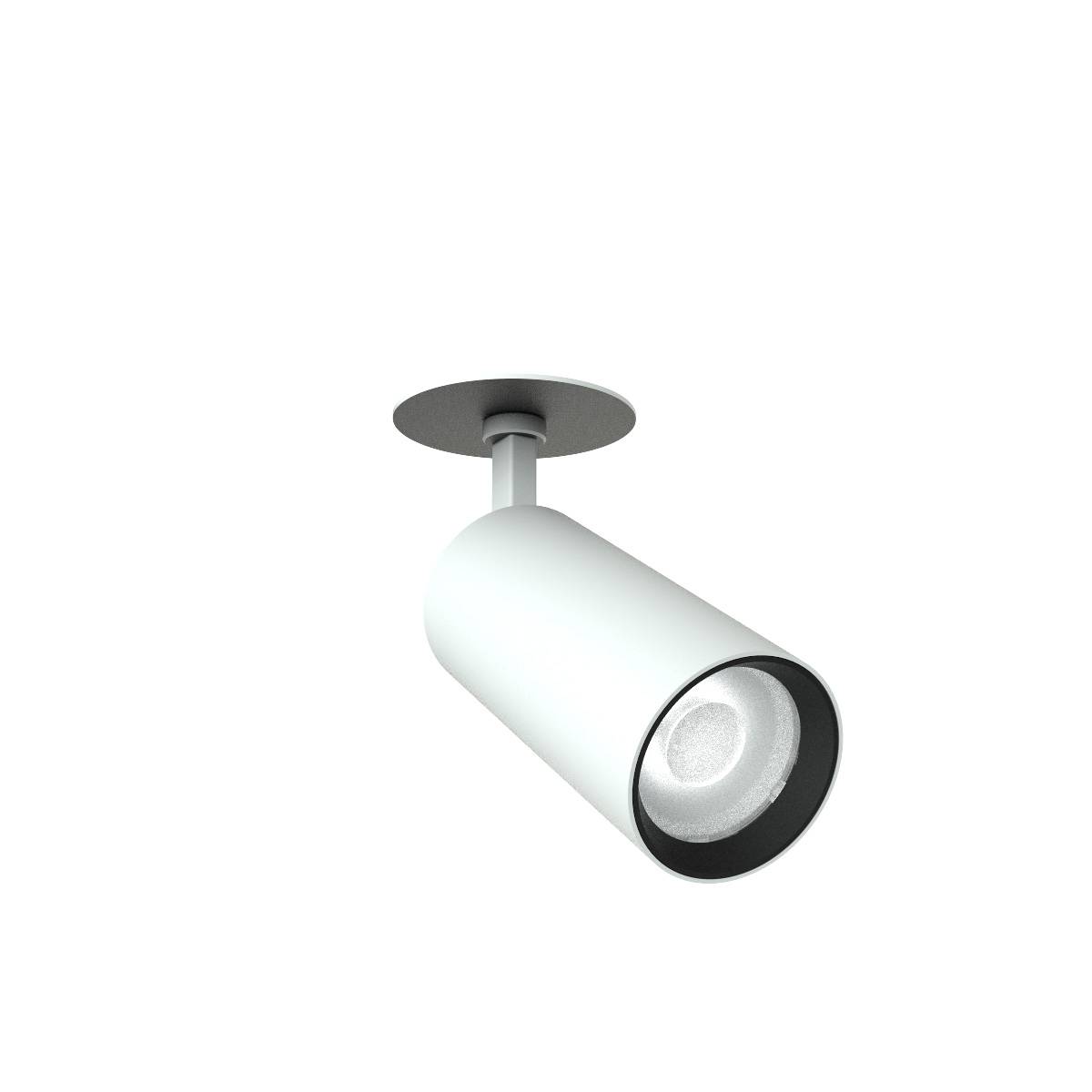

EIDOS RECESSED Ø75
EIDOS RECESSED Ø75 CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R75-3H927WB-LWLED30W2700 lm 2700KwideD: 75mm, H: 165mm
D91/R75-3H927VW-LWLED30W2700 lm 2700Kvery wideD: 75mm, H: 165mm
D91/R75-3H930SN-LWLED30W2550 lm 3000K CRI>90very narrowD: 75mm, H: 165mm
D91/R75-3H930NB-LWLED30W2700 lm 3000K CRI>90narrowD: 75mm, H: 165mm
D91/R75-3H930MB-LWLED30W2850 lm 3000K CRI>90mediumD: 75mm, H: 165mm
D91/R75-3H930WB-LWLED30W2850 lm 3000K CRI>90wideD: 75mm, H: 165mm
D91/R75-3H930VW-LWLED30W2850 lm 3000K CRI>90very wideD: 75mm, H: 165mm
D91/R75-3H940SN-LWLED30W2550 lm 4000K CRI>90very narrowD: 75mm, H: 165mm
D91/R75-3H940NB-LWLED30W2700 lm 4000K CRI>90narrowD: 75mm, H: 165mm
D91/R75-3H940MB-LWLED30W2850 lm 4000K CRI>90mediumD: 75mm, H: 165mm
D91/R75-3H940WB-LWLED30W2850 lm 4000K CRI>90wideD: 75mm, H: 165mm
D91/R75-3H940VW-LWLED30W2850 lm 4000K CRI>90very wideD: 75mm, H: 165mm
3

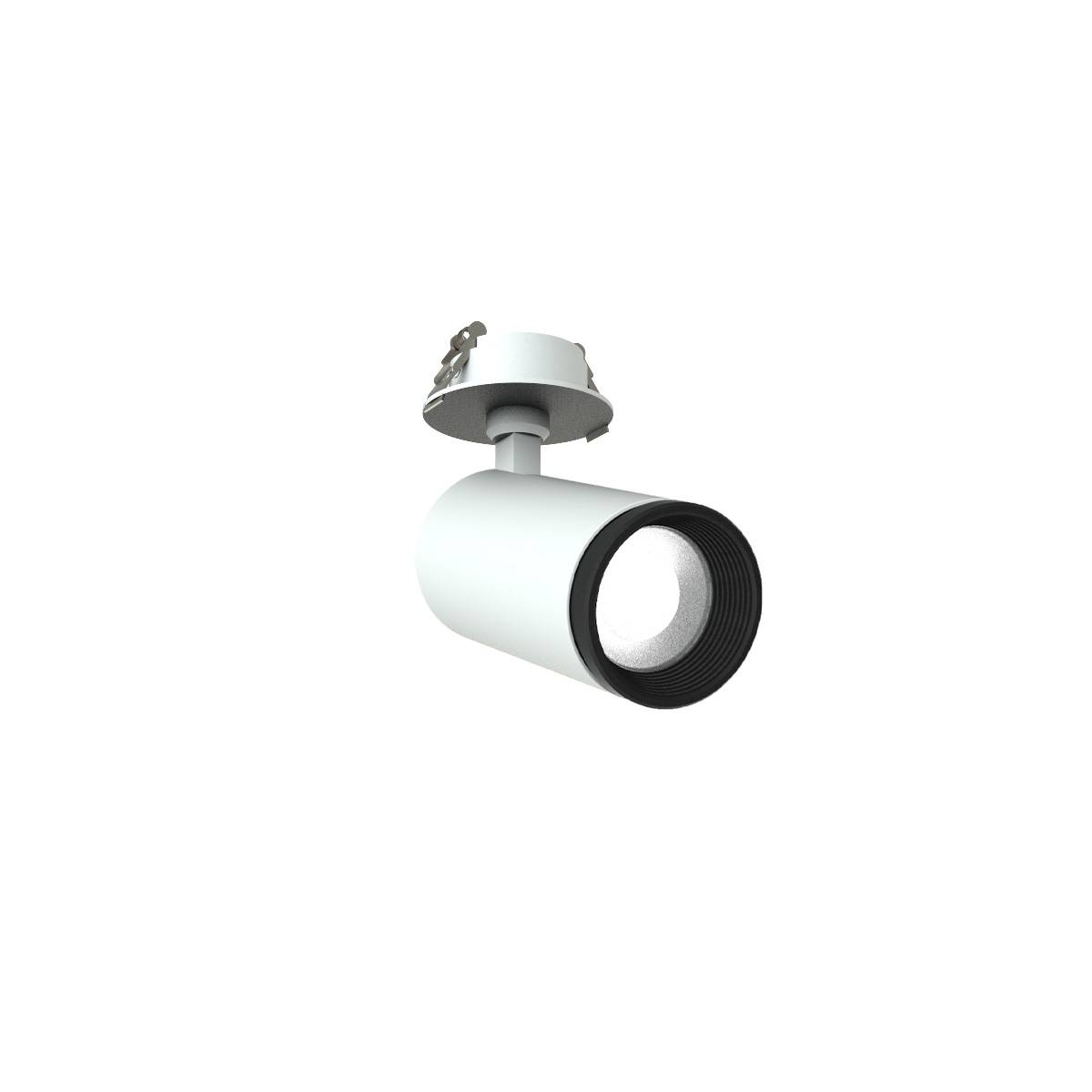

EIDOS RECESSED Ø75 ZOOM
EIDOS RECESSED Ø75 ZOOM CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R75-3H927ZB-LWLED25W1500 - 1875 lm 2700Kadjustable zoomD: 75mm, H: 153mm
D91/R75-3H930ZB-LWLED25W1501 - 1875 lm 3000K CRI>90adjustable zoomD: 75mm, H: 153mm
D91/R75-3H940ZB-LWLED25W1502 - 1875 lm 4000K CRI>90adjustable zoomD: 75mm, H: 153mm
27

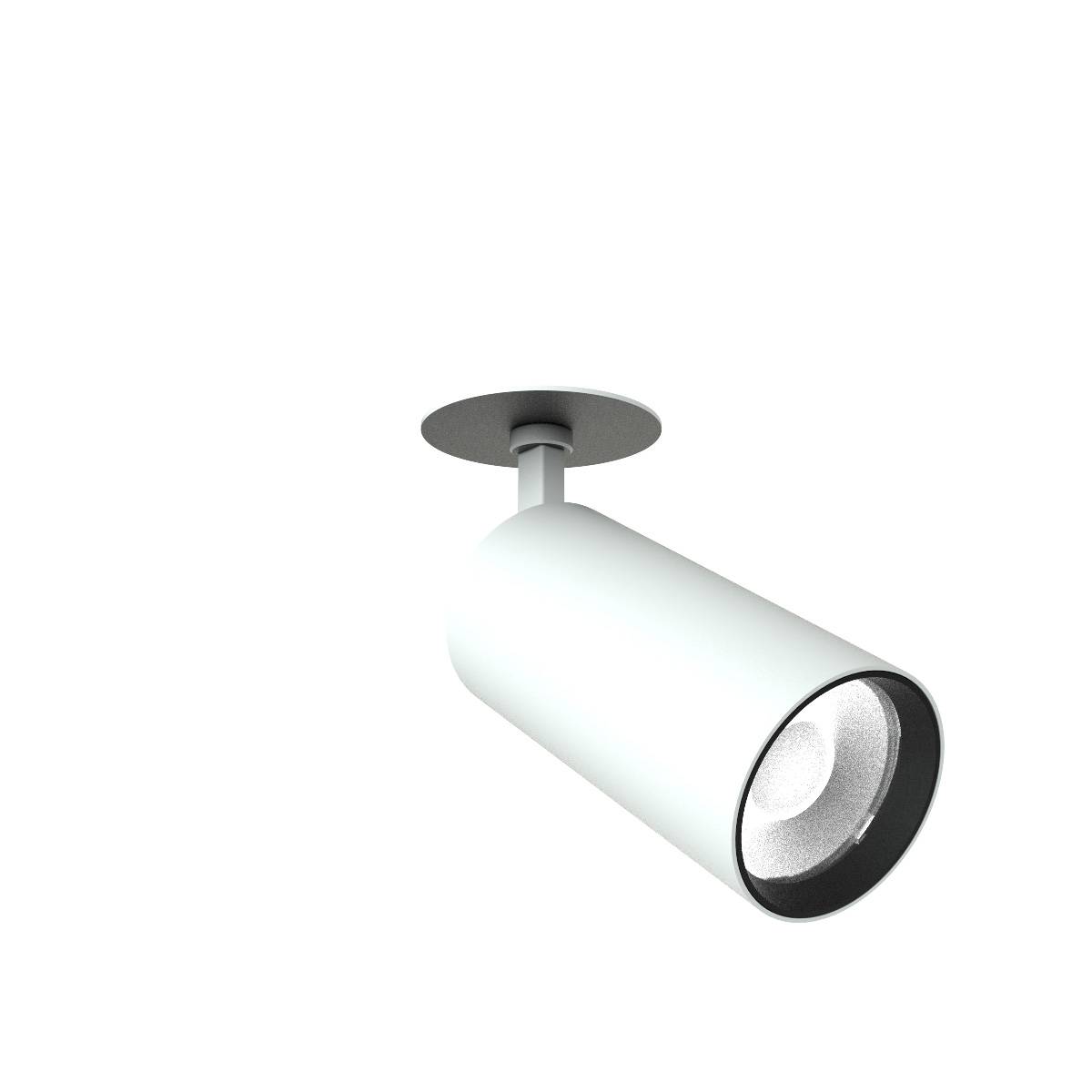

EIDOS RECESSED Ø85
EIDOS RECESSED Ø85 CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R85-3ML927WB-LWLED35W3150 lm 2700KwideD: 85mm, H: 175mm
D91/R85-3ML927VW-LWLED35W3150 lm 2700Kvery wideD: 85mm, H: 175mm
D91/R85-3ML930SN-LWLED35W2975 lm 3000K CRI>90very narrowD: 85mm, H: 175mm
D91/R85-3ML930NB-LWLED35W3150 lm 3000K CRI>90narrowD: 85mm, H: 175mm
D91/R85-3ML930MB-LWLED35W3325 lm 3000K CRI>90mediumD: 85mm, H: 175mm
D91/R85-3ML930WB-LWLED35W3325 lm 3000K CRI>90wideD: 85mm, H: 175mm
D91/R85-3ML930VW-LWLED35W3325 lm 3000K CRI>90very wideD: 85mm, H: 175mm
D91/R85-3ML940SN-LWLED35W2975 lm 4000K CRI>90very narrowD: 85mm, H: 175mm
D91/R85-3ML940NB-LWLED35W3150 lm 4000K CRI>90narrowD: 85mm, H: 175mm
D91/R85-3ML940MB-LWLED35W3325 lm 4000K CRI>90mediumD: 85mm, H: 175mm
D91/R85-3ML940WB-LWLED35W3325 lm 4000K CRI>90wideD: 85mm, H: 175mm
D91/R85-3ML940VW-LWLED35W3325 lm 4000K CRI>90very wideD: 85mm, H: 175mm
D91/R85-3HL927SN-LWLED40W3200 lm 2700Kvery narrowD: 85mm, H: 175mm
D91/R85-3HL927NB-LWLED40W3400 lm 2700KnarrowD: 85mm, H: 175mm
D91/R85-3HL927MB-LWLED40W3600 lm 2700KmediumD: 85mm, H: 175mm
D91/R85-3HL927WB-LWLED40W3600 lm 2700KwideD: 85mm, H: 175mm
D91/R85-3HL927VW-LWLED40W3600 lm 2700Kvery wideD: 85mm, H: 175mm
D91/R85-3HL930SN-LWLED40W3400 lm 3000K CRI>90very narrowD: 85mm, H: 175mm
D91/R85-3HL930NB-LWLED40W3600 lm 3000K CRI>90narrowD: 85mm, H: 175mm
D91/R85-3HL930MB-LWLED40W3800 lm 3000K CRI>90mediumD: 85mm, H: 175mm
D91/R85-3HL930WB-LWLED40W3325 lm 3000K CRI>90wideD: 85mm, H: 175mm
D91/R85-3HL930VW-LWLED40W3325 lm 3000K CRI>90very wideD: 85mm, H: 175mm
D91/R85-3HL940SN-LWLED40W3400 lm 4000K CRI>90very narrowD: 85mm, H: 175mm
D91/R85-3HL940NB-LWLED40W3600 lm 4000K CRI>90narrowD: 85mm, H: 175mm
D91/R85-3HL940MB-LWLED40W3800 lm 4000K CRI>90mediumD: 85mm, H: 175mm
D91/R85-3HL940WB-LWLED40W3325 lm 4000K CRI>90wideD: 85mm, H: 175mm
D91/R85-3HL940VW-LWLED40W3325 lm 4000K CRI>90very wideD: 85mm, H: 175mm
2

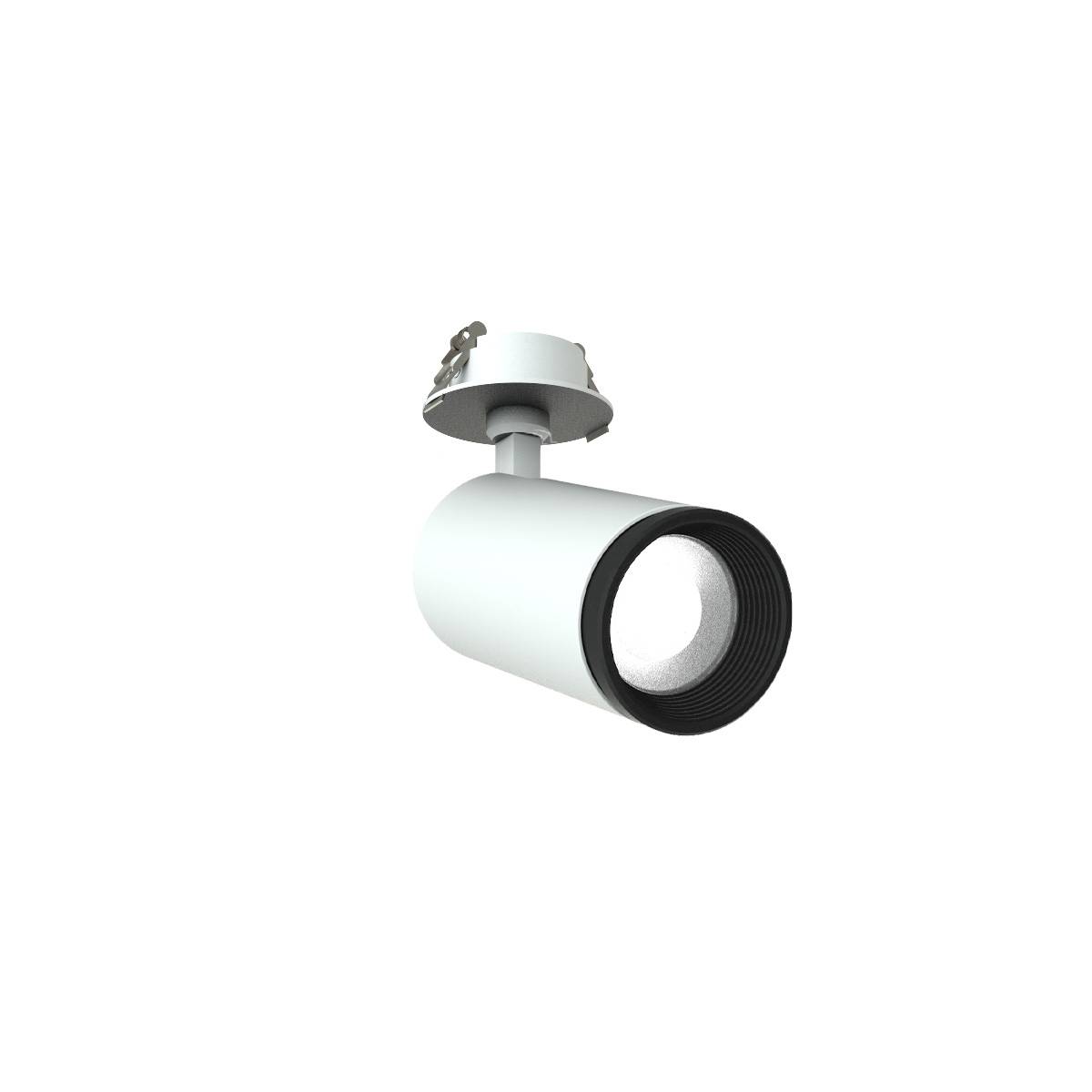

EIDOS RECESSED Ø85 ZOOM
EIDOS RECESSED Ø85 ZOOM CL3
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamDimensions
D91/R85-3H930ZB-LWLED35W2101 - 2625 lm 3000K CRI>90adjustable zoomD: 85mm, H: 160mm
D91/R85-3H940ZB-LWLED35W2102 - 2625 lm 4000K CRI>90adjustable zoomD: 85mm, H: 160mm
