D67/LE2-LWW-2AS-GR

  • Download
  • Request Information

Product Info

Item code
TEMA D67 / D67/LE2-LWW-2AS-GR
Category
Street light, Street light
Environments
urban landscape, street lighting
Mounting type
pole
Mounting note
Installation with quick connector IP67 integrated. Pole and pole mounting joint are accessories to be ordered separately.
Body
Housing made of extruded aluminium powder-coated. Die-Cast aluminum end caps painted in the same colour as the housing.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Standard Colour
GR | graphite satin finish

Dimensions

Total device height (mm)
52
Total device width (mm)
200
Total device length (mm)
500

Optical System

Optical System
SLED optical system with secondary lenses in PMMA, PC protection diffuser with surface treatment scratch-resistant and anti-aging UV rays.
Beam
asymmetrical
Emission
direct
Adjustable
No

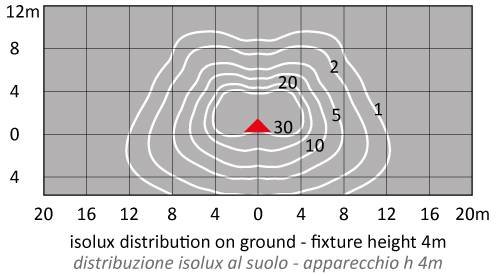

Photometrics

Sources

MacAdam
Step 2
Output Flux
3569 lm
Source
LED
Source type
SLED SQUARE
System power
43W
Temperature Colour
3000K CRI>80

Electrical

Ballast type
ON-OFF, mains voltage spikes protection up to 4KV. Automatic night power reduction upon request.
Frequency
50-60Hz
Lifetime
50.000h L80B10 (Ta=25°C)
Line input
Use only (EN 60598-1) a two core H07RN-F rubber cable with diameter between 7,5 and 12mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Pole

D67/PI300-GR

Rectangular section pole in corrosion resistant extruded aluminium. Polyester powder coating, pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment). AISI 304 stainless steel screws. Ready for anchoring to the base with direct burying in a block of concrete for 0.6m. The dimensions of the plinth will be prepared according to the consistency of the ground, following UNI EN 40. Complete with protective sheath at pole base. Suitable for mounting Tema Landscape fixtures. Height 3m above ground. -GR GRAPHITE

D67/PI400-GR

Rectangular section pole in corrosion resistant extruded aluminium. Polyester powder coating, pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment). AISI 304 stainless steel screws. Ready for anchoring to the base with direct burying in a block of concrete for 0.6m. The dimensions of the plinth will be prepared according to the consistency of the ground, following UNI EN 40. Complete with protective sheath at pole base. Suitable for Tema Landscape fixtures. Height 4m above ground. -GR GRAPHITE

D67/PID400-GR

Rectangular section pole in corrosion resistant extruded aluminium. Polyester powder coating, pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment). AISI 304 stainless steel screws. Ready for anchoring to the base with direct burying in a block of concrete for 0.6m. The dimensions of the plinth will be prepared according to the consistency of the ground, following UNI EN 40. Complete with protective sheath at pole base. Suitable for mounting Tema Landscape fixtures and one Tema City at 3m height. Height 4m above ground. -GR GRAPHITE

D67/PP300-GR

Rectangular section pole in corrosion resistant extruded aluminium and base plate in hot-dip galvanized steel. Polyester powder coating, pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment). AISI 304 stainless steel screws. Base anchoring by means of bolts D67/TF accessory (to be ordered separately). Suitable for mounting Tema Landscarpe fixtures. Height 3m above ground. -GR GRAPHITE

D67/PP400-GR

Rectangular section pole in corrosion resistant extruded aluminium and base plate in hot-dip galvanized steel. Polyester powder coating, pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment). AISI 304 stainless steel screws. Base anchoring by means of bolts D67/TF accessory (to be ordered separately). Suitable for mounting Tema Landscarpe fixtures. Height 4m above ground. -GR GRAPHITE

D67/PPD400-GR

Rectangular section pole in corrosion resistant extruded aluminium and base plate in hot-dip galvanized steel. Polyester powder coating,with pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment). AISI 304 stainless steel screws. Base anchoring by means of bolts D67/TF accessory (to be ordered separately). Suitable for mounting Tema Landscape fixtures and one Tema City at 3m height. Height 4m above ground. -GR GRAPHITE

Mounting

D67/TF

Stainless steel structure, to cement to the ground to fix rectangular section poles with plate (D67 /PP …).
