D67/CE2-LWW-2RA-GR

  • Download
  • Request Information

Product Info

Item code
TEMA D67 / D67/CE2-LWW-2RA-GR
Category
Street light, Wall mounted
Environments
urban landscape, street lighting
Mounting type
surface
Mounting note
Installation with quick connector IP67 integrated. Pole and pole mounting joint are accessories to be ordered separately.
Body
Housing made of extruded aluminium powder-coated. Die-Cast aluminum end caps painted in the same colour as the housing.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Standard Colour
GR | graphite satin finish

Dimensions

Total device height (mm)
52
Total device width (mm)
200
Total device length (mm)
500

Optical System

Optical System
SLED optical system with secondary lenses in PMMA, PC protection diffuser with surface treatment scratch-resistant and anti-aging UV rays.
Beam
road asymmetrical
Emission
direct
Adjustable
No

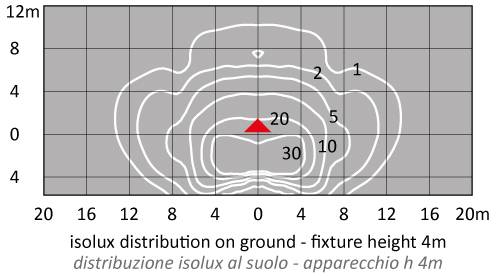

Photometrics

Sources

MacAdam
Step 2
Output Flux
3569 lm
Source
LED
Source type
SLED SQUARE
System power
43W
Temperature Colour
3000K CRI>80

Electrical

Ballast type
ON-OFF, mains voltage spikes protection up to 4KV. Automatic night power reduction upon request.
Frequency
50-60Hz
Lifetime
50.000h L80B10 (Ta=25°C)
Line input
Use only (EN 60598-1) a two core H07RN-F rubber cable with diameter between 7,5 and 12mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Pole

8PCA4060A531V-GR

Conical straight pole Ø60mm, height above ground level 4m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PCA6060C831V-GR

Conical straight pole Ø60mm, height above ground level 6m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PCA8060E831V-GR

Conical straight pole Ø60mm, height above ground level 8m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PRA50608931V-GR

Tapered straight pole Ø60mm, height above ground level 5m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PRA7060C731V-GR

Tapered straight pole Ø60mm, height above ground level 7m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PTA40608931V-GR

Cylindrical straight pole with tang Ø60mm, height above ground level 4m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

Mounting

D67/B-GR

Adjustable fixing base, for all wall mounted Tema City fixtures on pole connection for conical or cylindrical poles, and for rectangular pole at half-height (D67/PID ..., D67/PPD ...). It allows the ±15° inclination of the luminaire. -GR GRAPHITE

D67/GA1-GR

Pole connection. Suitable for one fixture Tema City on conical or cylindrical poles with diameters 76 or 102mm. Powder painting after passivation -GR GRAPHITE. AISI 304 stainless steel hardware.

D67/GA2-GR

Pole connection. Suitable for two fixtures Tema City on conical or cylindrical poles with diameters 76 or 102mm. Powder painting after passivation -GR GRAPHITE. AISI 304 stainless steel hardware.

D67/GA3-GR

Pole connection. Suitable for one fixture Tema City on conical or cylindrical poles with diameters between 60 and 63mm. Powder painting after passivation -GR GRAPHITE. AISI 304 stainless steel hardware.

D67/GA4-GR

Pole connection. Suitable for two fixtures Tema City on conical or cylindrical poles with diameters between 60 and 63mm. Powder painting after passivation -GR GRAPHITE. AISI 304 stainless steel hardware.

Optical

D67/SL-GR

Squared anti-glare louver for each pair of SLED -GR GRAPHITE.
