D44K/T3-9VLWW-SB-DD
Product Info
Item code
TELLUX D44 / D44K/T3-9VLWW-SB-DD
Category
Walk-over
Environments
urban landscape, façades and architectural works, wellness, hallway, conference hall, places of worship, residential lighting
Mounting type
with rough-in housing
Body
Corrosion resistant die-cast aluminium body. High impact resistant composite technopolymer housing box. AISI 316 stainless steel frame sandblasted.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Static load
5000Kg
Standard Colour
IS | stainless steel frame sandblasted
Dimensions
Weight (kg)
8.8
D: Total diameter device (mm)
315
Volume piece packed (m³)
0.046
Optical System
Optical System
Tempered safety glass - 12 mm thickness, mechanical and thermal shock resistant.
Beam
medium
Emission
direct
Adjustable
Yes
Tilt
±15° VOLVENDO

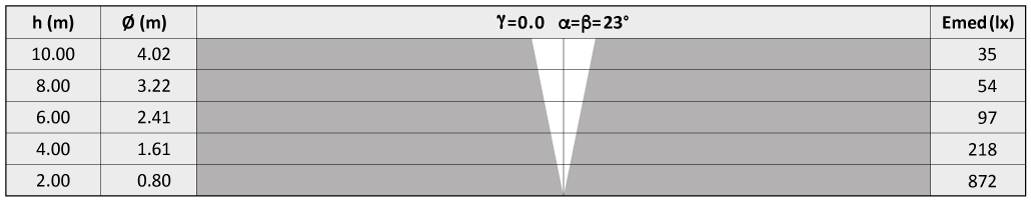

Photometrics
Sources
MacAdam
Step 3
Output Flux
1267 lm
Source type
LED
System power
22,4W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
50.000h L80B10 (Ta=25°C)
Line input
Pre-wired and tested with resin sealed watertight H07RN-F five poles cable.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
ACS/CR7
IP68 connector plug and socket terminal for cable Ø7-12mm - 5x0,5-1,5mm².
ACS/FX05
3 ways IP68 wiring box for DALI looping connection.
Optical
D44/3-HLV
Honeycomb anti-glare louver for TELLUX LARGE T315/Q315 VOLVENDO.
