D44/T00-LWNMF
Product Info
Item code
TELLUX D44 / D44/T00-LWNMF
Category
Walk-over
Environments
urban landscape, façades and architectural works, wellness, hallway, conference hall, places of worship, residential lighting
Mounting type
with rough-in housing
Body
Corrosion resistant anodized aluminium body. High impact resistant composite technopolymer housing box. AISI 316 stainless steel frame sandblasted.
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Wiring
SELV power supply required, 12-24V-DC.
Standard Colour
IS | stainless steel frame sandblasted

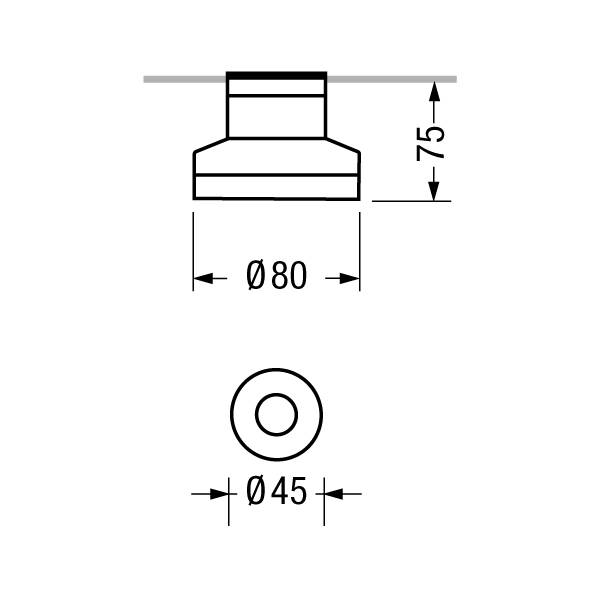

Dimensions
D: Total diameter device (mm)
45
Included Accessories
Rough-in housing
- Ground and Wall rough-in housing box, high impact resistant composite technopolymer (Code PM/D44-025).
Optical System
Optical System
Unbreakable anti UV polycarbonate diffusers.
Beam
wide
Emission
direct
Adjustable
No

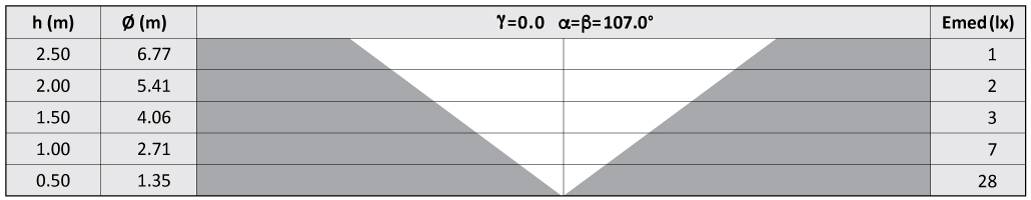

Photometrics
Sources
MacAdam
Step 3
Output Flux
69 lm
Source type
LED
Source power
1W
Temperature Colour
4000K CRI>80
Electrical
Ballast type
ON-OFF.
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Pre-wired and tested with resin sealed watertight RN8-F 48V cable (for a fast and secure connection to the main power line, use ACS/CR1 connector or similar).
Mounting ballast type
Independent
Voltage
12-24V-DC
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
ACS/AR15-24
For all models Tellux T45/Q45. SELV power supply 15W 220/240V-50/60Hz output 24V-DC PWM. Insulation class II, can feed up to 6 fixtures.
ACS/AR15-24-DD
For all models Tellux T45/Q45. SELV power supply 15W DALI, 220/240V-50/60Hz output 24V-DC PWM. Insulation class II, can feed up to 6 fixtures.
