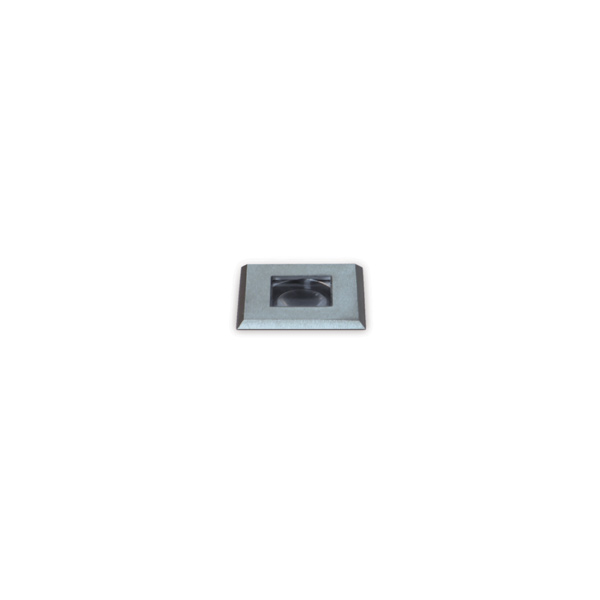

D44/Q00-LWNNB
Product Info
Item code
TELLUX D44 / D44/Q00-LWNNB
Category
Walk-over
Environments
urban landscape, façades and architectural works, wellness, hallway, conference hall, places of worship, residential lighting
Mounting type
with rough-in housing
Body
Corrosion resistant die-cast aluminium body. High impact resistant composite technopolymer housing box.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Wiring
SELV power supply required, 12-24V-DC.
Standard Colour
IS | stainless steel frame sandblasted
Dimensions
Total device width (mm)
45
Total device length (mm)
45
Included Accessories
Rough-in housing
- Ground and Wall rough-in housing box, high impact resistant composite technopolymer (Code PM/D44-025).
Optical System
Optical System
Unbreakable anti UV polycarbonate diffusers.
Beam
narrow
Emission
direct
Adjustable
No

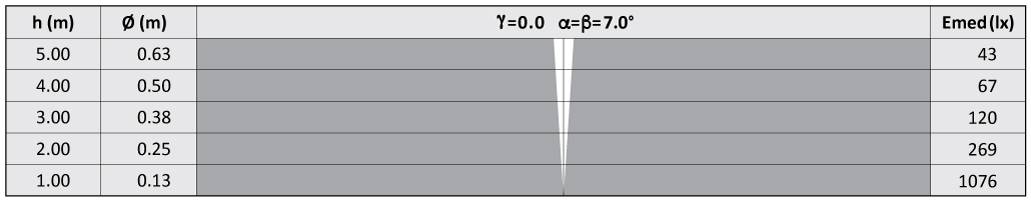

Photometrics
Sources
MacAdam
Step 3
Output Flux
72 lm
Source type
LED
Source power
1W
Temperature Colour
4000K CRI>80
Electrical
Ballast type
ON-OFF.
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Pre-wired and tested with resin sealed watertight H07RN-F cable (for a fast and secure connection to the main power line, use ACS/CR1 connector or similar).
Mounting ballast type
Independent
Voltage
12-24V-DC
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
ACS/AR15-24
For all models Tellux T45/Q45. SELV power supply 15W 220/240V-50/60Hz output 24V-DC PWM. Insulation class II, can feed up to 6 fixtures.
ACS/AR15-24-DD
For all models Tellux T45/Q45. SELV power supply 15W DALI, 220/240V-50/60Hz output 24V-DC PWM. Insulation class II, can feed up to 6 fixtures.
