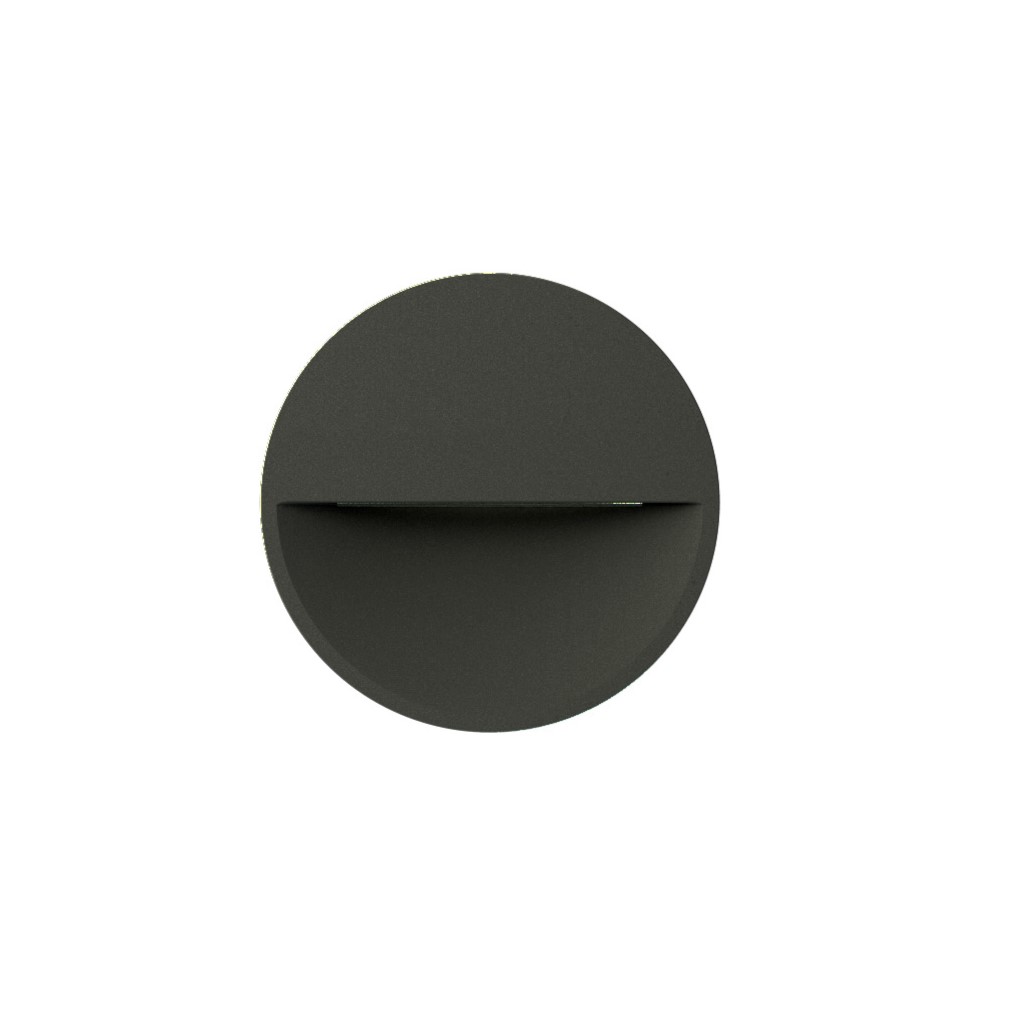

D73/RO-3830-GR
Product Info
Item code
ON / D73/RO-3830-GR
Category
Step light, Step light
Environments
residential lighting, hallway
Mounting type
parallel wall mounting
Body
Corrosion resistant die-cast aluminium body.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
GR | graphite satin finish
Option colors
AL | aluminium grey
Color on request
DN | embossed white
Dimensions
Total device width (mm)
35
Weight (kg)
0.8
D: Total diameter device (mm)
173
Optical System
Optical System
PMMA diffuser.
Beam
asymmetrical
Emission
direct
Adjustable
No
Sources
MacAdam
3
Output Flux
414 lm
Source type
LED
System power
6,5W
Temperature Colour
3000K
Electrical
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Remote, not included
Voltage
24V-DC
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
