D20C/T2-83HP-WS-DD-AL
Product Info
Item code
DUETTO D20 / D20C/T2-83HP-WS-DD-AL
Category
Downlight, Ceiling, Downlight, Ceiling
Environments
façades and architectural works, hallway, conference hall, art and culture, leisure areas, places of worship
Mounting type
surface
Body
Extruded aluminium cylinder.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish

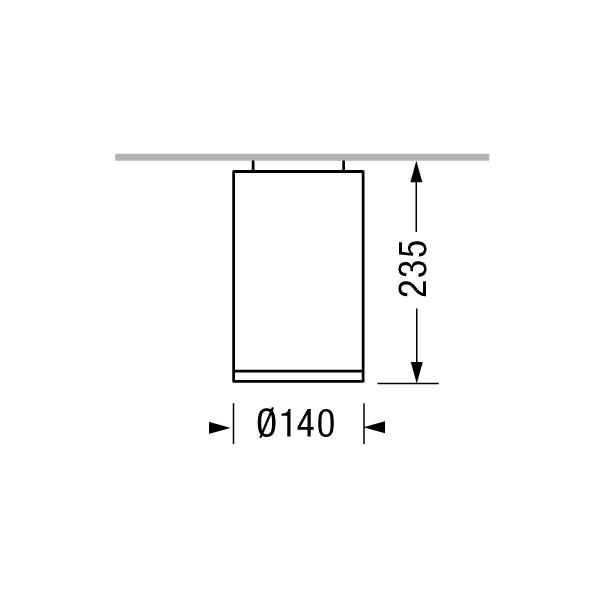

Dimensions
Total device height (mm)
235
Weight (kg)
2.9
D: Total diameter device (mm)
140
Volume piece packed (m³)
0.008
Optical System
Diffuser
Tempered safety glass - 6 mm thickness, mechanical and thermal shock resistant.
Optical System
PC with aluminium coating reflector.
Beam
wall washer
Emission
direct
Adjustable
No

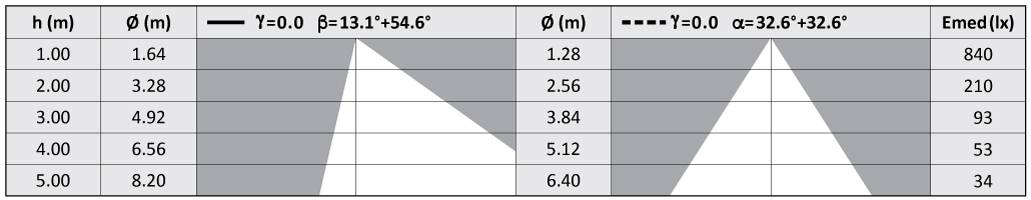

Photometrics
Sources
MacAdam
Step 2
Output Flux
2420 lm
Source type
LED COB
System power
27W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Two H07RN-F, rubber cable section 2x1mm². Pre-wired and tested with resin sealed watertight H07RN-F cables.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
