D20/T2-84HP-1MB-AL
Product Info
Item code
DUETTO D20 / D20/T2-84HP-1MB-AL
Category
Wall mounted, Wall mounted
Environments
façades and architectural works, hallway, conference hall, art and culture, leisure areas, places of worship, residential lighting
Mounting type
surface
Body
Control gear box in die-cast, corrosion resistant, aluminium. Extruded aluminium cylinder.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish
Dimensions
Total device height (mm)
265
Weight (kg)
4.7
D: Total diameter device (mm)
140
Volume piece packed (m³)
0.013
Optical System
Diffuser
Tempered safety glass - 6 mm thickness, mechanical and thermal shock resistant.
Optical System
PC with aluminium coating reflector.
Beam
wide
Emission
mono emission
Adjustable
No
Photometrics
Sources
MacAdam
Step 2
Output Flux
2478 lm
Source type
LED COB
System power
27W
Temperature Colour
4000K CRI>80
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Cable entry with gland for H07RN-F (EN 60598-1) wire with diameter between 7,5 and 12mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Optical

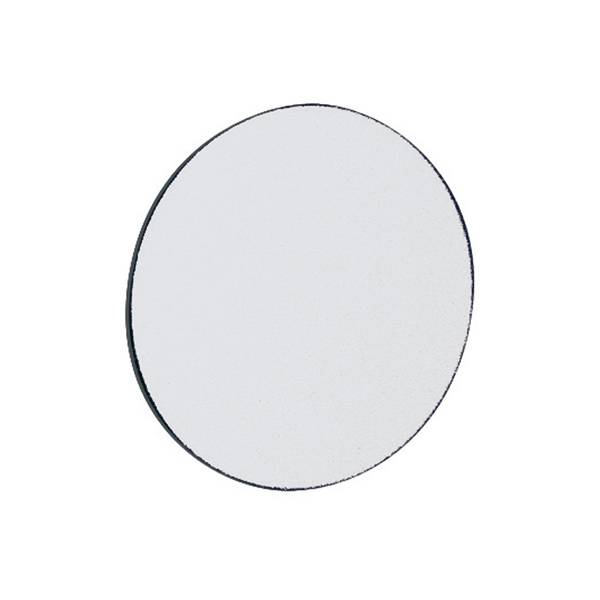

D20/LD
For models D20 duetto/T2. Diffused beam lens.

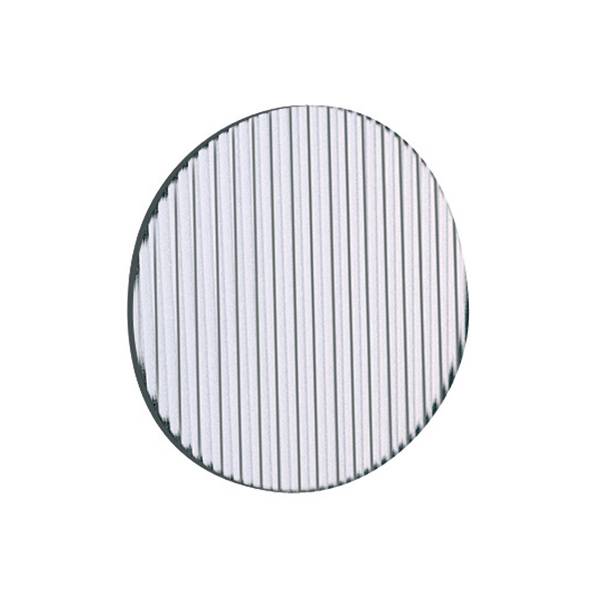

D20/LE
For models D20 duetto/T2. Elliptical beam lens.
D20/T2-HL
Honeycomb anti-glare louver for DUETTO/T2.
Mounting

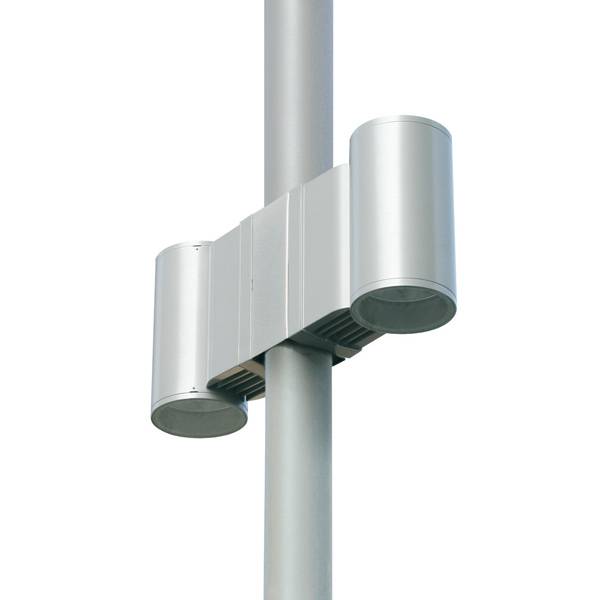

D20/PD76-AL
For models D20 duetto/T2. -AL ALUMINIUM powder painting double pole joint for cylindrical pole Ø76mm.

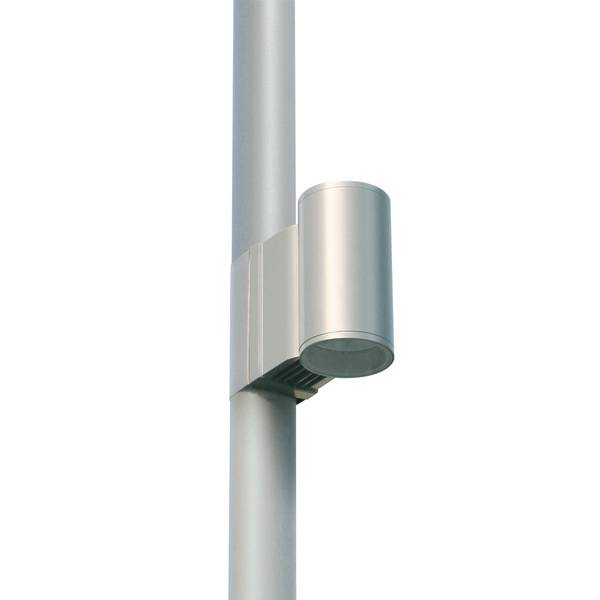

D20/PS76-AL
For models D20 duetto/T2. -AL ALUMINIUM powder painting single pole joint for cylindrical pole Ø76mm.
