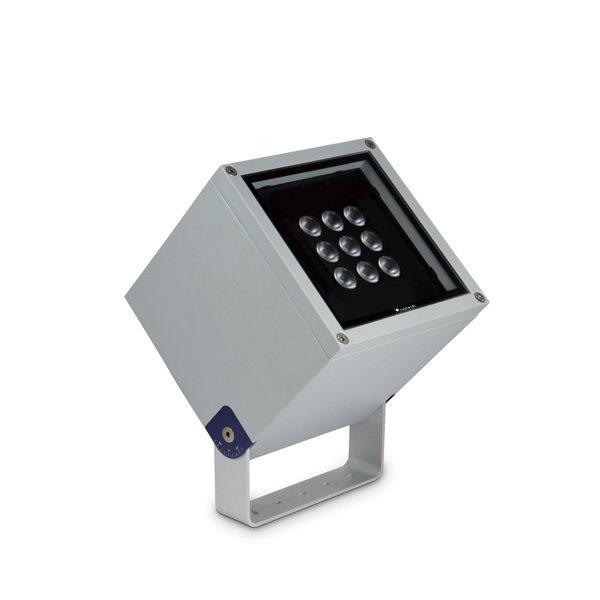

D58/P2-9LWW-RA-AL

  • Download
  • Request Information

Product Info

Item code
BOX D58 / D58/P2-9LWW-RA-AL
Category
Wall mounted, Wall mounted, Ceiling, Ceiling, Street light, Street light, Projectors, Projectors
Environments
urban landscape, street lighting, façades and architectural works, wellness, hallway, industrial areas, places of worship
Mounting type
pole
Body
Corrosion resistant die-cast aluminium body. Aluminium mounting bracket.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Wiring
Built-in control-gear 220/240V-AC 50/60Hz.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish

Dimensions

Total device width (mm)
207
Total device length (mm)
207
Weight (kg)
5.4
Volume piece packed (m³)
0.014

Optical System

Optical System
Safety tempered glass.
Beam
road asymmetrical
Emission
direct
Adjustable
No

Photometrics

Sources

MacAdam
Step 2
Output Flux
1223 lm
Source type
LED
System power
22,4W
Temperature Colour
3000K CRI>80

Electrical

Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Use only (EN 60598-1) cable type H07RN-F with diameter between 7 and 10mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Pole

8PCA4060A531V-GR

Conical straight pole Ø60mm, height above ground level 4m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PCA6060C831V-GR

Conical straight pole Ø60mm, height above ground level 6m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PCA8060E831V-GR

Conical straight pole Ø60mm, height above ground level 8m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PRA50608931V-GR

Tapered straight pole Ø60mm, height above ground level 5m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PRA7060C731V-GR

Tapered straight pole Ø60mm, height above ground level 7m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PTA40608931V-GR

Cylindrical straight pole with tang Ø60mm, height above ground level 4m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

D22/PT105-AL

Low poles in aluminium Ø60mm -AL ALUMINIUM, length pole 105cm, for embedded mounting and with the independent base D22/BS to be fixed to flooring and paving.

D22/PT250-AL

Low poles in aluminium Ø60mm -AL ALUMINIUM, length pole 250cm, for embedded mounting.

D22/PT75-AL

Low poles in aluminium Ø60mm -AL ALUMINIUM, length pole 75cm, for embedded mounting and with the independent base D22/BS to be fixed to flooring and paving.

D43/P300-AL

Extruded anodyzed aluminum pole Ø60mm, height above ground level 3m -AL ALUMINIUM.

Mounting

ACS/GA1-AL

Universal pole connection. Suitable for one or two fixtures on conical or cylindrical poles with diameters between 65 and 80mm. Powder painting after passivation -AL ALUMINIUM. AISI 304 stainless steel hardware.

ACS/GA60-AL

Universal pole connection. Suitable for one or two fixtures on conical or cylindrical poles with diameters between 60 and 63mm. Powder painting after passivation -AL ALUMINIUM. AISI 304 stainless steel hardware.

ACS/LASER

Laser pointer.

ACS/TP60-AL

For models: D30 boxer, D58 box/P1/P2 and D55 flat/P1/P2. Single connection for Ø60mm pole top entry. The single pole connection, suitable for pole top entry or piece of pole Ø60mm, allows to freely adjust the floodlight. Powder painting after passivation -AL ALUMINIUM. AISI 304 stainless steel hardware.

D30T/PZ

For models: D30R miniboxer, D30T boxer/T, D58 box/P1/P2, D30 boxer and D55 flat/P1/P2. Ground fixing spike. AISI 304 stainless steel ground spike, fork shaped, that allows the ground mounting of the floodlight.

Optical

D58/2-GP-GR

Anti-glare louver for BOX/C2 and P2 -GR GRAPHITE.

D58/2-VS-GR

Visor for BOX/C2 and P2 -GR GRAPHITE.

D58/P2-GP

For models D58 box/P2/C2. Anti-glare louver.

D58/P2-LD

For models D58 box/P2/C2. Diffused beam lens.

D58/P2-LE

For models D58 box/P2/C2. Elliptical beam lens.
