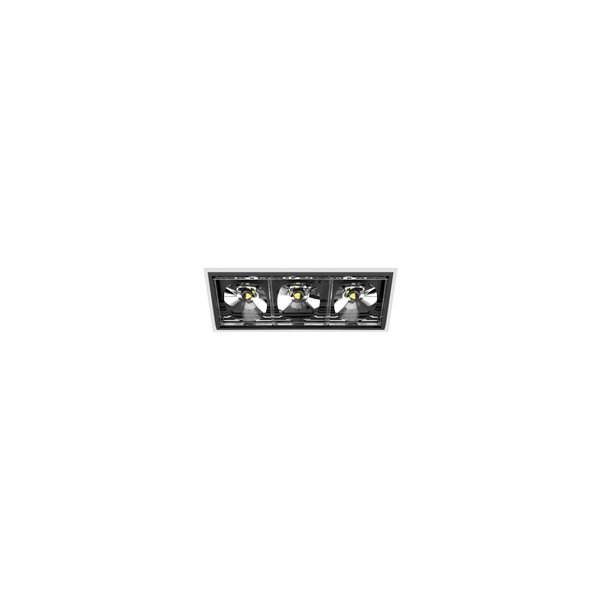

3100-TREL3DK93-DN
Product Info
Item code
AXEL LINE / 3100-TREL3DK93-DN
Category
Downlight
Environments
wellness, hallway, conference hall, art and culture, office, leisure areas, retail areas, study areas
Mounting type
trimless
Body
Composite structure made of extruded aluminium and laser-shaped matching steel parts, powder-coated.
Wiring
Electrical harness wired for 220-240V-AC 50-60Hz power supply. 1.5mm² LN terminal block. Electronic ballast.
Standard Colour
DN | embossed white
Option colors
BE | embossed black
Dimensions
Total device height (mm)
67
Total device width (mm)
47
Total device length (mm)
113
Optical System
Optical System
SLED LINE optical system with UV resistant PC lenses.
Beam
diffuse UGR<19
Emission
direct
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross18.4
UGR longitudinal18.4
Sources
MacAdam
Step 3
Output Flux
670 lm
Source
3 LED
Source type
SLED LINE
System power
7W
Temperature Colour
3000K CRI>90
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
50.000h L90B10 (Ta=25°C)
Mounting ballast type
Independent
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
